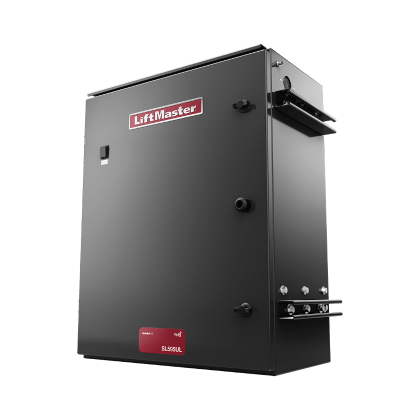

Liftmaster SL595UL

Dual Voltage AC Heavy Duty Industrial Slide Gate Operators (Single and 3 Phase)

  • For use on heavy gates and high-cycle applications such as commercial and industrial locations
  • Rated for gates from 70ft and 1,700 lbs. to 90ft and 2500 lbs (See manual for specific gate ratings by model)
  • Meets UL 325 Safety Standards.
VIEW BROCHURE REQUEST A QUOTE


  • Security+ 2.0® Safeguards access to a property with an encrypted signal to virtually eliminate interference and offer extended range with Security+ 2.0.
  • Safety Reversing When detecting an obstruction the gate reverses with the inherent reversing sensor and the included monitored safety accessories.
  • Quick Close Feature With installation of optional expansion board, prevent unauthorized access with quick close feature that stops vehicles from tailgating.
  • UL Listed Tested to the most stringent UL 325 industry guidelines. Secondary entrapment devices need to be added to meet UL325 standards. Your Installer will recommend suitable secondary entrapment devices for your installation, such as photo eyes or edge sensors.
  • Sturdy Construction Heavy-Duty Steel Lockable weatherproof cabinet.
  • Reliable Transmission Commercial Gear-Driven Transmission provides unsurpassed reliability.

  • For Gates up to 75 Feet 1/2 HP rated for overhead/v-groove gate up to 45 feet in length and 1,000 pounds and cantilever gates up to 25 feet in length and 1,000 pounds; 1 HP rated for overhead/v-groove gate up to 70 feet in length and 1,600 pounds and cantilever gates up to 35 feet in length and 1,600 pounds; 1 1/2 HP rated for overhead/v-groove gate up to 75 feet in length and 1,900 pounds and cantilever gates up to 40 feet in length and 1,900 pounds.
  • Securely monitor and control gates and doors with myQ® smartphone app (requires additional Internet Gateway unit).
  • Easy Access Control Integrates easily with LiftMaster Access Control Technology such as CAPXL Connected Access Portal or the CAP2D Door Controller.
  • Gate Real-Time Alerts Know when a gate opens with real-time alerts.
  • Close any gate with a tap, from anywhere. Using the myQ® smartphone app (requires additional Internet Gateway unit).

WHAT'S INCLUDED

Monitored Retro Reflective Photo Eye

LMRRUL

Monitored Retro Reflective Photo Eye
5 ft small profile resistive edge with aluminum channel

S505AL

5 ft small profile resistive edge with aluminum channel
